Lap Joint Flanges

  • Lap Joint Flanges
  • Lap Joint Flanges

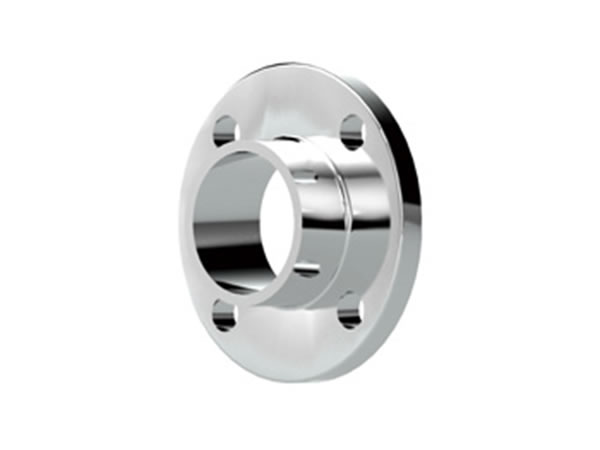

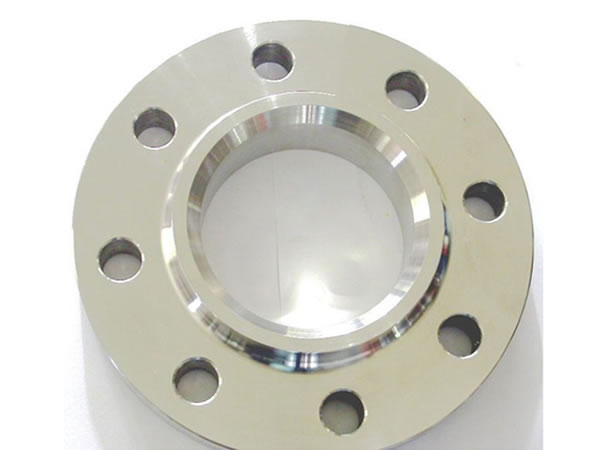

A lap joint flange slides directly over the end of a pipe and are most often used as a stub end fitting.

Standard:
ANSI B16.5, ANSI B16.47, ANSI B16.36, MSS SP44, API 6A, BS4504, BS10, EN1092, UNI, DIN

Material:
ASTM A105; ASTM A350, A694 F42/F46/F52/F60/F65
ASTM A182 F304/304L, F316/316L, F321, F310,
ASTM A 182 F51/F53/F55

Size:
1/2"-60"
DN10 ~ DN4000

Pressure Class:
150, 300, 400, 600, 900, 1500, 2500

Sealing Surface:
Flat face, raised face, ring joint face, lap-joint face, large male-female, small male-female, large tongue & groove, small tongue & groove.

Advantage:
1. Through more than 30 years of hard work, Juntai has the experience and capability to produce high quality butt weld fittings.
2. All products undergo a variety of tests under ISO9001 quality management system standards to ensure premium quality.
3. All products are painted with a black paint or clear lacquer, then undergo an anti-rust treatment to prolong the service life.
4. Packaging is done on a wooden case or a wooden pallet.
5. Customization services are available.
