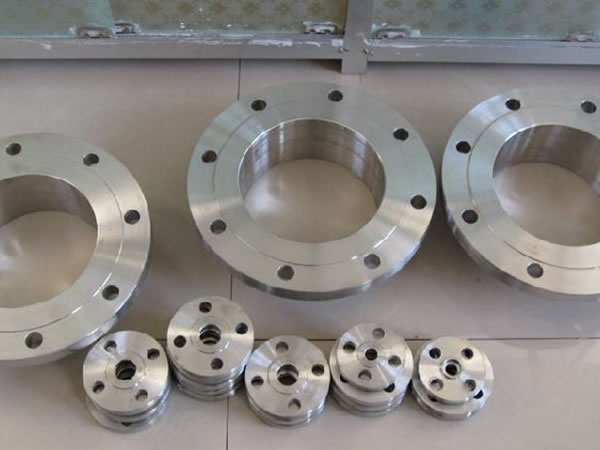

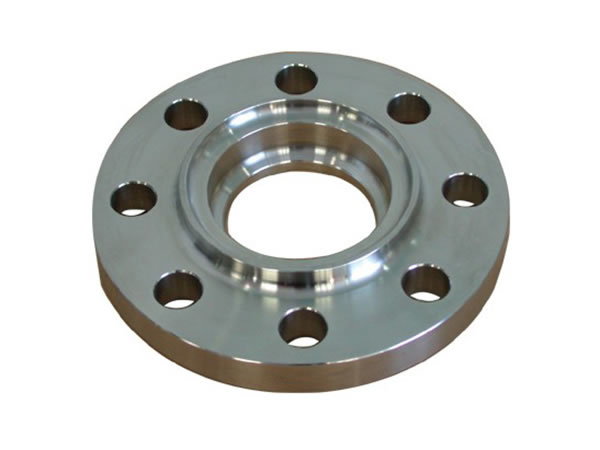

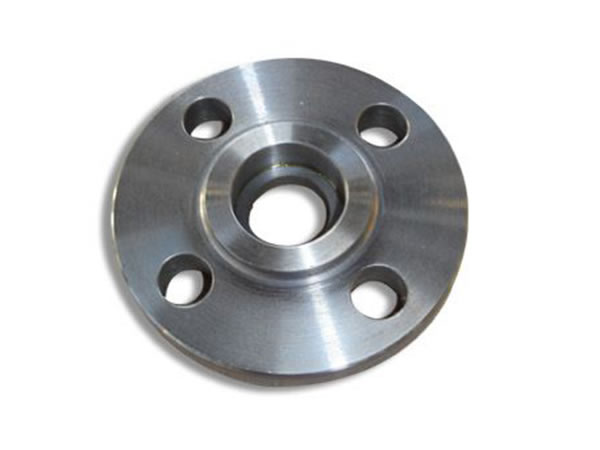

Socket Weld Flanges

  • Socket Weld Flanges
  • Socket Weld Flanges
  • Socket Weld Flanges
A socket weld flange is a pipe fitting in which the pipe is installed into the recessed area of a valve, fitting or flange.

Standard:
ANSI B16.5, ANSI B16.47, ANSI B16.36, MSS SP44, API 6A, BS4504, BS10, EN1092, UNI, DIN.

Materials:
Carbon Steel: ASTM A105, 20 #, Q235, 16Mn
Stainless Steel: ASTM A182 F304, 304L, F316, 316L
Alloy Steel: ASTM A182 F1, F9, F11, F91, A182F12, A182F11, 12Cr1MoV, A335P22

Production Process:
The socket weld flange is produced primarily through a forging process.

Connection:
Flange nut, bolt connection

Dimension:
3/8 "to 60"
DN10 ~ DN4000

Sealing Surface:
Raised face (RF), uneven surface (MFM), tongue and groove face (TG), ring joint face (RJ)

Advantage:
1. Through more than 30 years of hard work, Juntai has the experience and capability to produce high quality butt weld fittings.
2. All products undergo a variety of tests under ISO9001 quality management system standards to ensure premium quality.
3. All products are painted with a black paint or clear lacquer, then undergo an anti-rust treatment to prolong the service life.
4. Packaging is done on a wooden case or a wooden pallet.
5. Customization services are available.
