Figure 8 Spectacle Blinds

  • Figure 8 Spectacle Blinds
  • Figure 8 Spectacle Blinds
  • Figure 8 Spectacle Blinds

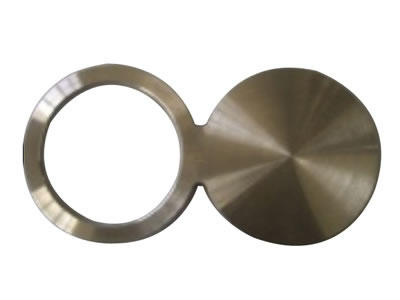

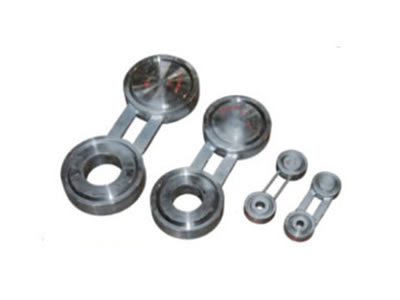

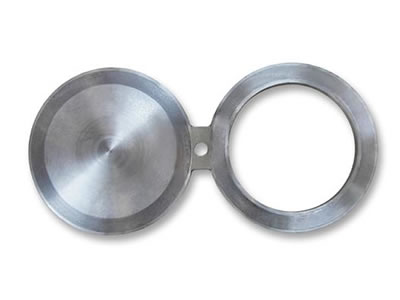

A forged figure 8 spectacle blind (also known as a spectacle flange) is comprised of 2 metal discs attached in the middle with a small piece of steel, giving it the appearance of a pair of spectacles or glasses. One end of the spectacle flange is solid, while the other has a hole in the middle. Spectacle blind flanges are used in piping systems that require regular separation and situations where the flow through the pipe system repeatedly stops. This flange can be spun in place to either the solid or the hollow end within the pipe system to open and close the flow based on application needs.

Standard:
ANSI B16.48

Materials:
Carbon Steel: ASTM A105, 20 #, Q235, 16Mn
Stainless Steel: ASTM A182 F304, 304L, F316, 316L
Alloy Steel: ASTM A182 F1, F9, F11, F91, A182F12, A182F11, 12Cr1MoV, A335P22

Size:
3/8 "to 60"
DN10 ~ DN4000

Sealing Surface Type:
Inter-American System: sudden face (abbreviated as RF), ring joint face (abbreviated RJ)

Advantage:
1. Through more than 30 years of hard work, Juntai has the experience and capability to produce high quality butt weld fittings.
2. All products undergo a variety of tests under ISO9001 quality management system standards to ensure premium quality.
3. All products are painted with a black paint or clear lacquer, then undergo an anti-rust treatment to prolong the service life.
4. Packaging is done on a wooden case or a wooden pallet.
5. Customization services are available.
