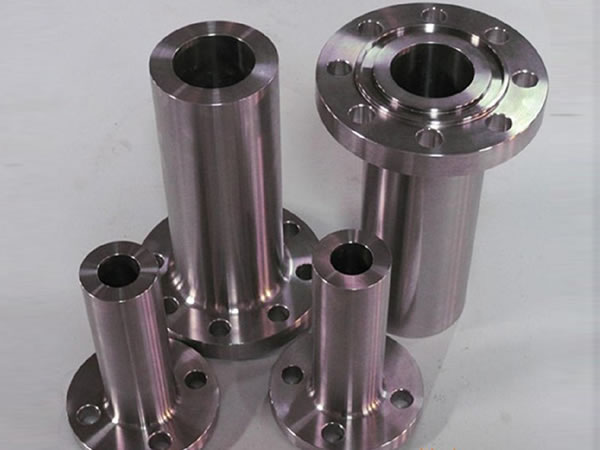

Long Weld Neck Flanges

  • 2-5-long-weld-neck-flange_01
Description

A long neck flange is among the lightest and most economical of FCI flange connections in areas of usage where a minimum reinforcing area is required. These flanges feature a uniform barrel outside diameter, which provides relief clearance between the connection neck and the nut.

Standard:
ANSI B16.5, ANSI B16.47, ANSI B16.36, MSS SP44, API 6A, BS4504, BS10, EN1092, UNI, DIN.

Materials:
Carbon Steel: ASTM A105, 20 #, Q235, 16Mn
Stainless Steel: ASTM A182 F304, 304L, F316, 316L
Alloy steel: ASTM A182 F1, F9, F11, F91, A182F12, A182F11, 12Cr1MoV, A335P22

Production Process:
After forging, the flange undergoes machine molding.

Size:
3/8 "to 60"
DN10 ~ DN4000

Application Industry:
Electricity, oil and gas, petrochemical, chemical, shipbuilding, heating, papermaking, metallurgy

Advantage:
1. Through more than 30 years of hard work, Juntai has the experience and capability to produce high quality butt weld fittings.
2. All products undergo a variety of tests under ISO9001 quality management system standards to ensure premium quality.
3. All products are painted with a black paint or clear lacquer, then undergo an anti-rust treatment to prolong the service life.
4. Packaging is done on a wooden case or a wooden pallet.
5. Customization services are available.
