Stub Ends

  • Stub Ends
  • Stub Ends
  • Stub Ends
  • Stub Ends
  • Stub Ends

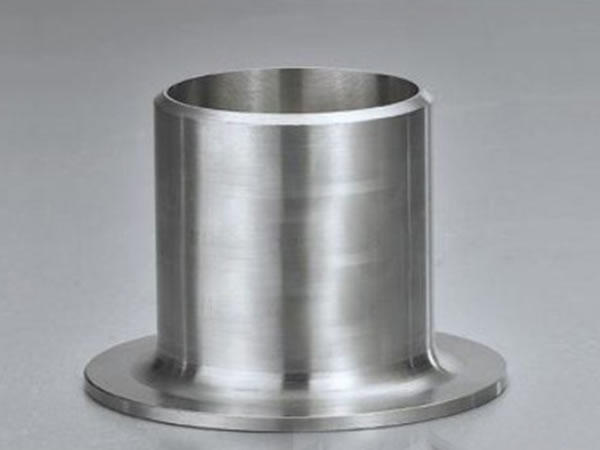

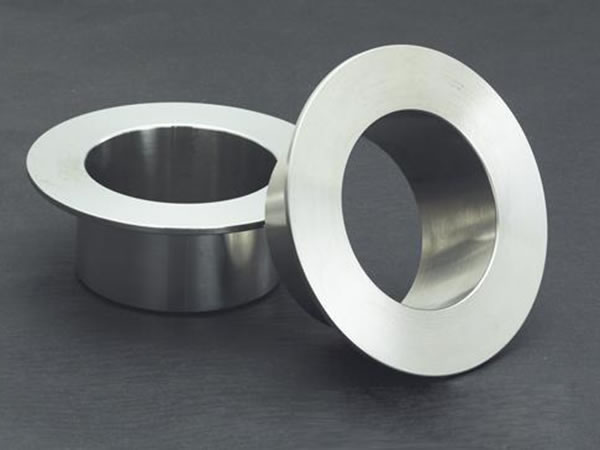

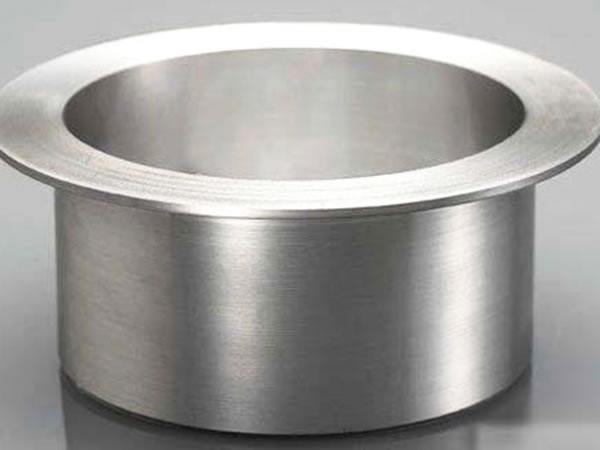

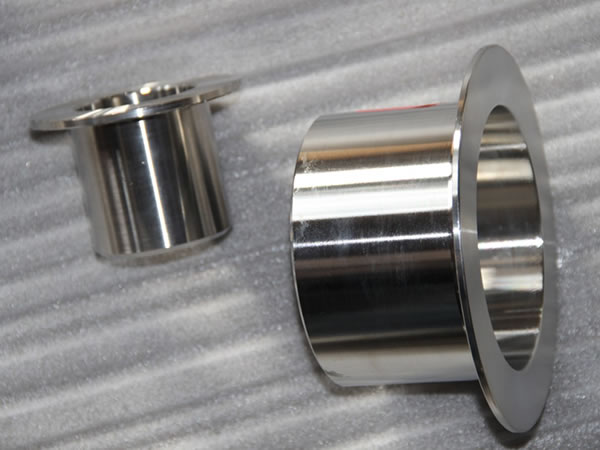

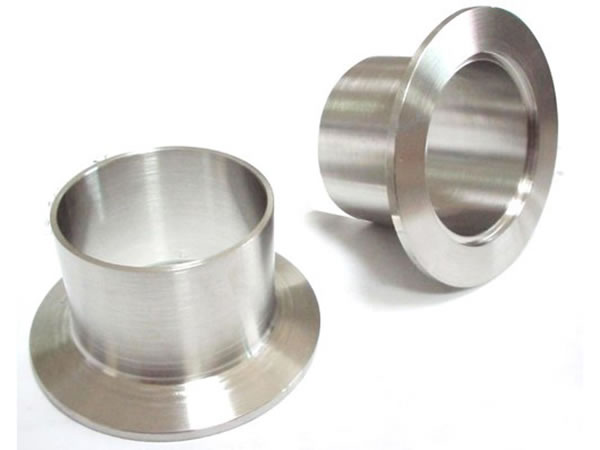

Stub ends are made through a stamping process. They are manufactured based on the nature of the deformation elongations or compression. A stub end is a pipe fitting used in place of a welded flange where the use of a rotating back up flange is needed. They are also called lap joints and vanstone flared laps.

The main factor that affects the margin flanging coefficient is the plasticity (or ductility) of materials. The larger the material elongation δ, strain hardening exponent and anisotropy coefficient, the less the margin flanging coefficient is, which better facilitates the flanging process. The greater the margin flanging coefficient is, the lower the performance of the stub end.

Standard:
ASME B16.9, GB/T12459, EN10253, DIN2605, DIN2609, ISO5251, JIS B2220

Material:
Cast iron, malleable iron, nonferrous metals and plastics.

Size:
From 1/2" to 24" (seamless pipe fittings)
From 1/2" to 80" (seam pipe fittings)

Wall Thickness:
SCH5-SCH10, SCH20, SCH40, SCH80, SCH30, SCH100, SCH100, SCH120, SCH140, SCH160, XXS, DIN

Advantage:
1. Through more than 30 years of hard work, Juntai has the experience and capability to produce high quality butt weld fittings.
2. All products undergo a variety of tests under ISO9001 quality management system standards to ensure premium quality.
3. All products are painted with a black paint or clear lacquer, then undergo an anti-rust treatment to prolong the service life.
4. Packaging is done on a wooden case or a wooden pallet.
5. Customization services are available.
