Forged Steel Crosses

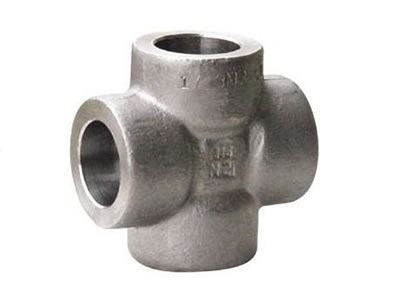

  • Forged Steel Socket Weld Cross

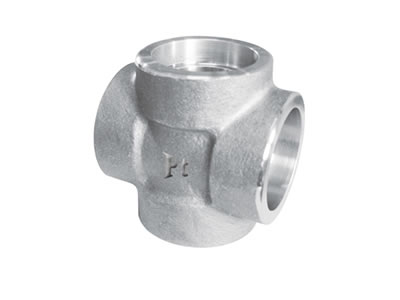

  • Forged Steel Socket Weld Cross

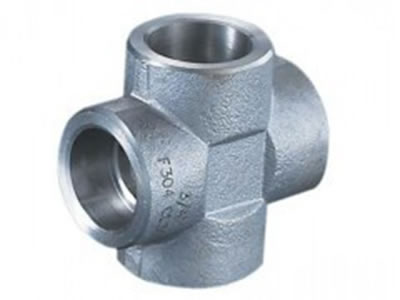

  • Forged Steel Socket Weld Cross

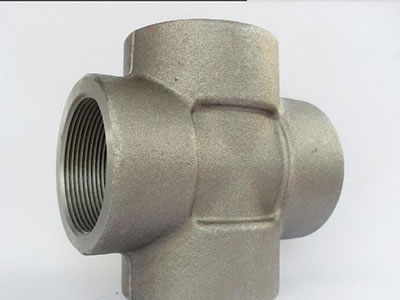

  • Forged Steel Threaded Cross

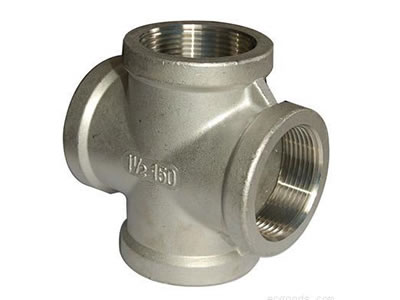

  • Forged Steel Threaded Cross
Description

Forged steel crosses are used to connect tubes and tube fittings. They are placed on the main tube where the branch is needed, and the subsequent cross can be classified into an equal cross or an unequal cross. The equal cross features ends that are the same diameter, and the unequal cross features an identical diameter for the 2 main ends, while the diameter of the branch end is smaller than the main ends.

Standard:
ASME B16.11, BS3799, MSS-SP-79/SP-83/SP-95-SP/97, JIS B2316

Material:
Stainless Steel: ASTM A182 (F321 F304/304L F316/316L F11 F22)
Carbon Steel: A105, A350 LF1/LF2/LF3, MSS SP44&A694 F42/46/52/56/60/65/70
Alloy Steel: A182 F1/F5a/F9/F11/F22/F91

Size:
1/4"---4" (DN8----DN400)

Type:
Socket welding; threaded (NPT, BSPT DIN2999, ISO7/1)

Pressure Class:
2000LB, 3000LB, 6000LB, 9000LB

Advantage:
1. Through more than 30 years of hard work, Juntai has the experience and capability to produce high quality butt weld fittings.
2. All products undergo a variety of tests under ISO9001 quality management system standards to ensure premium quality.
3. All products are painted with a black paint or clear lacquer, then undergo an anti-rust treatment to prolong the service life.
4. Packaging is done on a wooden case or a wooden pallet.
5. Customization services are available.
